FMM80A

4G LTE Cat M1 Plug & Play Tracker with Bluetooth® Technology

Key Features:

LTE Cat M1 Connectivity
High-Precision GNSS
Bluetooth 4.0 Support
Crash Detection
Plug & Play Installation
Internal Backup Battery
CAT M1
Reliable 4G (LTE CAT M1) connection
OBDII PORT CONNECTION
Allows installing tracker in a few seconds
BLUETOOTH® 4.0
Bluetooth® for external devices and Low Energy sensors
CRASH DETECTION
Crash detection functionality working according accelerometer data
  • Light vehicles

    Light vehicles

  • Driver log-book

    Driver log-book

  • Insurance Telematics

    Insurance Telematics

  • Courier delivery services

    Courier delivery services

The Teltonika FMM80A is a state-of-the-art 4G LTE Cat M1 plug-and-play GPS tracker tailored specifically for the North American market, offering reliable and precise tracking for fleet management and vehicle monitoring. With its LTE Cat M1 and NB IoT connectivity, the device ensures robust global coverage with a fallback to 2G, making it ideal for businesses operating across diverse regions. Its plug-and-play installation allows users to simply connect it to the vehicle's OBD-II port, enabling tracking within seconds without the need for complex wiring or professional assistance.

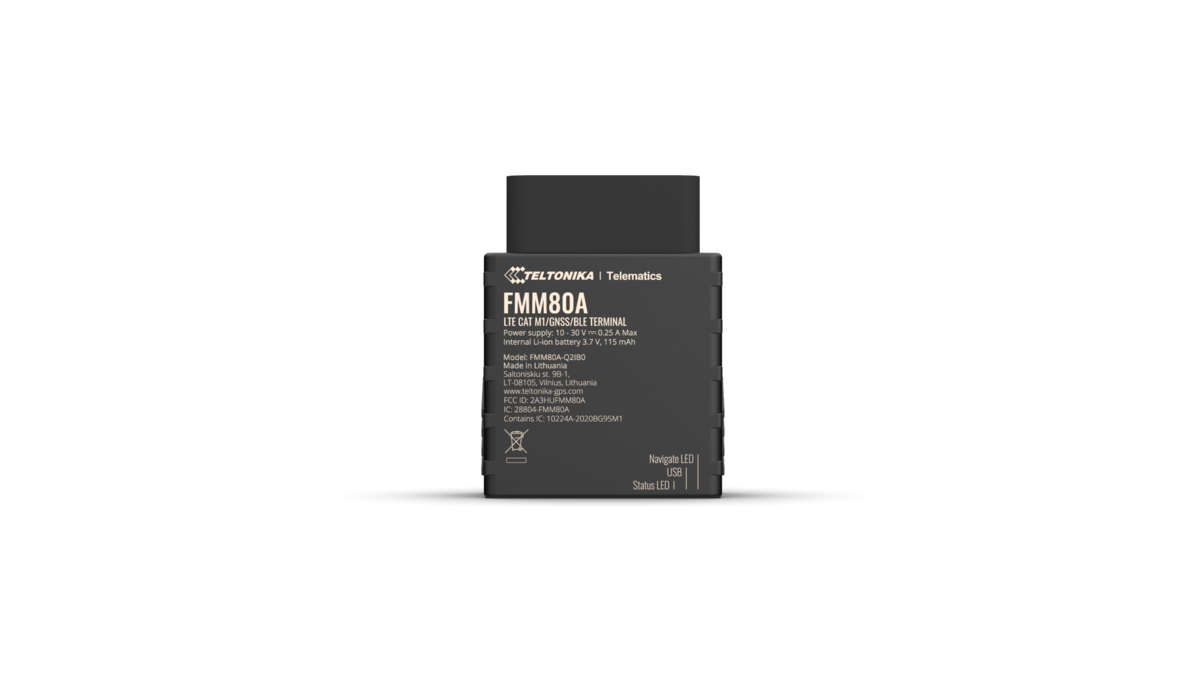

FMM80A Front View

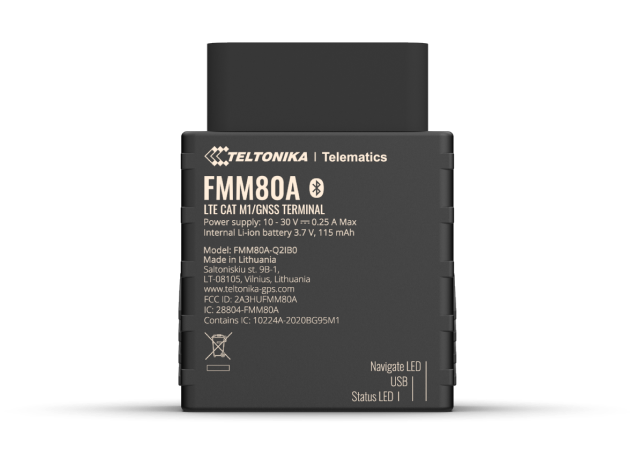

FMM80A Side View

Equipped with advanced features, the FMM80A enhances operational efficiency and safety through real-time tracking and detailed data insights. The built-in 3-axis accelerometer provides accurate crash detection, delivering configurable crash trace data for incident analysis, while Bluetooth LE connectivity supports integration with external sensors and beacons to monitor variables like temperature, humidity, and movement. The device also supports geofencing, speeding detection, and towing alerts, making it versatile for both small businesses and large fleets.

Technical Specifications

Module
Name FMM80A-Q2IB0: Quectel BG95-M1 with Teltonika TM2500
Technology LTE(CAT M1)/NB IoT/2G/GNSS/BLUETOOTH
GNSS
Systems GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver Tracking: 33 channel
Tracking Sensitivity -165 dBM
Position Accuracy <2.5 m CEP
Startup Times Hot: <1s, Warm: <25s, Cold: <35s
Cellular
Technology LTE CAT M1, NB IoT, GSM
2G Bands Quad-band 850/900/1800/1900 MHz
LTE CAT M1 Bands LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
NB IoT Bands B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data Transfer LTE: Max. 588 Kbps (DL)/Max. 1119 Kbps (UL), GSM: Max. 85.6 Kbps
Data Support SMS (text/data)
Power
Input Voltage Range 10-30 V DC with overvoltage and reverse polarity protection
Internal Backup Battery 115 mAh Li-Ion battery 3.7 V (0.43 Wh)
Bluetooth
Specification 4.0 + LE
Supported Peripherals Temperature and humidity sensors, beacons, universal BLE sensors
Physical Specifications
Dimensions 67.2 x 49.6 x 25 mm (L x W x H)
Weight 63 g
Operating Environment
Operating Temperature (without battery) -40°C to +85°C
Storage Temperature (without battery) -40°C to +85°C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery Charge Temperature 0°C to +45°C
Battery Discharge Temperature -20°C to +60°C
Battery Storage Temperature -20°C to +35°C for 6 months
Interface
OBDII Connection K-Line, CAN bus data (limited OBDII data, no CAN bus reading)
GNSS Antenna Internal High Gain
GSM Antenna Internal High Gain
USB 2.0 Micro-USB
LED Indication 2 status LED lights
SIM Micro-SIM card
Memory 128 MB internal flash memory

Features

Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep Modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and Firmware Update FOTA Web, Teltonika Configurator
SMS Configuration, Events, Debug
GPRS Commands Configuration, Debug
Time Synchronization GNSS, NITZ, NTP
Ignition Detection Accelerometer, External Power Voltage
