FMM00A

LTE CAT1 Advanced Plug and Play Tracker with Bluetooth® Technology

Key Features:

LTE CAT M1 Connectivity
High-Precision GNSS
Bluetooth 4.0 Support
Crash Detection
OBDII Data Reading
Internal Backup Battery
CAT M1
Device supports LTE CAT M1 connectivity, which allows low power wide area technologies to be used
CRASH DETECTION
Crash detection feature based on the accelerometer data
OBDII DATA
Standard OBDII data reading from vehicle ECU
BLUETOOTH® 4.0
Bluetooth for external devices and Low Energy Sensors
  • Fleet management

    Fleet management

  • Driver log-book

    Driver log-book

  • Insurance Telematics (UBI)

    Insurance Telematics (UBI)

  • Connected car

    Connected car

  • Rental and leasing

    Rental and leasing

The Teltonika FMM00A is a cutting-edge LTE CAT1 advanced plug-and-play tracker that leverages Bluetooth technology to deliver exceptional connectivity and functionality. Designed to cater to a diverse range of applications, this device excels in areas such as fleet management, car rental, driver log-books, and insurance telematics. Its standout feature is the support for LTE CAT M1 connectivity, which provides reliable, low-power wide-area communication—perfect for modern IoT solutions. The plug-and-play design ensures hassle-free installation, while Bluetooth 4.0 compatibility allows seamless integration with external devices and low-energy sensors, making it a versatile tool for various industries.

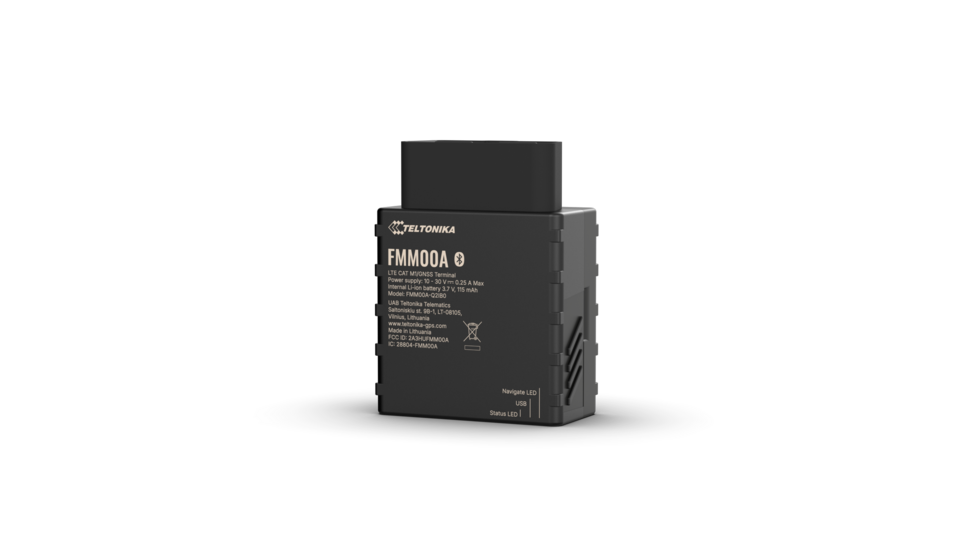

FMM13A Side View

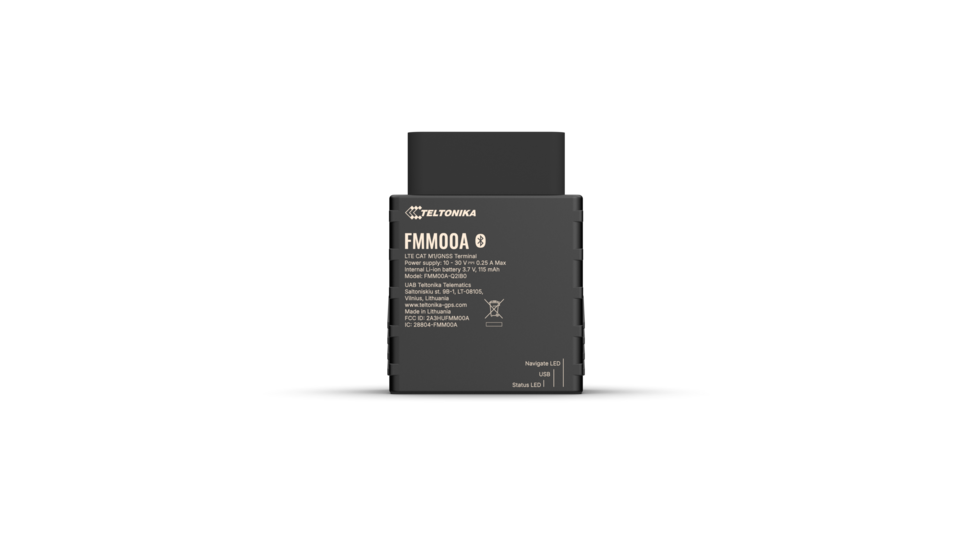

FMM13A Front View

Beyond its connectivity, the FMM00A offers advanced features that enhance vehicle monitoring and management. It includes crash detection based on accelerometer data, providing critical insights during accidents, and can read OBDII data directly from the vehicle’s ECU for detailed diagnostics and performance tracking. The device supports practical use cases like green driving, over-speeding detection, and jamming detection, ensuring safer and more efficient vehicle operation. Equipped with an internal backup battery, the FMM00A remains functional even without a primary power source, guaranteeing uninterrupted tracking and peace of mind for users.

Technical Specifications

General
Model Quectel EG915U-LA
Technology LTE CAT1, GSM, GNSS, BLUETOOTH
GNSS
Systems GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver 33-channel tracking
Tracking Sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Startup Times Hot: <1s, Warm: <25s, Cold: <35s
Cellular
2G Bands 850/900/1800/1900 MHz
LTE Bands FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28, TDD: B40
Data Speed LTE: 10Mbps DL / 5Mbps UL, GSM: 85.6Kbps
SMS Text/Data Supported
Power
Input Voltage 10-30 V DC (with OVP)
Backup Battery 170mAh Li-Ion, 3.7V (0.63 Wh)
Bluetooth
Version 4.0 + LE
Peripherals Temperature/Humidity sensors, OBDII, Barcode Scanner, BLE sensors
Physical
Dimensions 67.2 x 49.6 x 25 mm
Weight 63 g
Environment
Operating Temp -40°C to +85°C (without battery)
Storage Temp -40°C to +85°C (without battery)
Humidity 5% to 95% non-condensing
IP Rating IP41
Battery Temp Charge: 0°C to +45°C, Discharge: -20°C to +60°C, Storage: -20°C to +35°C
Interfaces
OBDII K-Line, CAN bus
Antenna Internal High Gain (GNSS/GSM)
USB Micro-USB 2.0
LED 2 status LEDs
SIM Micro-SIM
Memory 128MB Flash

Features

Sensors Accelerometer
Detection Overspeeding, Jamming, Crash, Towing, Unplug, Excessive Idling
Geofencing Auto/Manual Geofence
Modes GPS Sleep, Deep Sleep, Ultra Deep Sleep
Firmware FOTA Web, Configurator
Communication SMS, TCP Commands
Time Sync GNSS, NITZ, NTP
Fuel Monitoring Via OBDII (vehicle-dependent)
Ignition Detection Accelerometer, Voltage, Engine RPM
