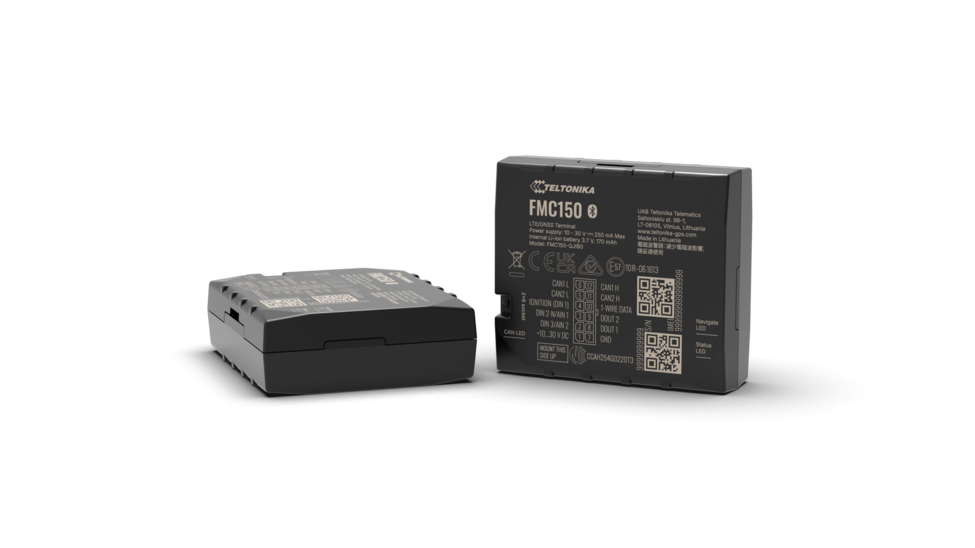

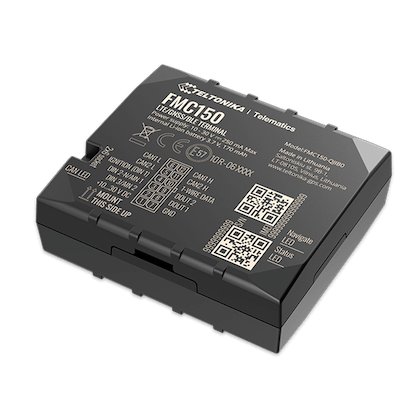

FMC150

Advanced 4G LTE Cat 1 GPS tracker with integrated CAN data processor

Key Features:

LTE CAT M1 Connectivity
High-Precision GNSS
Bluetooth 4.0 Support
Crash Detection
OBDII Data Reading
Internal Backup Battery
Built-in CAN bus data reading chip
Reading CAN data from light & electric vehicles, trucks, buses and special machinery

SUPPORTING OVER 100 CAN PARAMETERS

Extensive data collection enables detailed analysis of vehicle operations, facilitating effective maintenance and performance optimisation
CAN data reading from EVs
Bringing new value and expanding usage scenarios with more than 100 supported vehicles in the EV market

Supported vehicle and data list

Know in advance what vehicle parameters are available to optimise your fleet operations
  • Fleet management

    Fleet management

  • Driver log-book

    Driver log-book

  • Insurance Telematics (UBI)

    Insurance Telematics (UBI)

  • Connected car

    Connected car

  • Rental and leasing

    Rental and leasing

The Teltonika FMC150 is an advanced 4G Cat 1 GPS tracker that features a built-in CAN data processor, making it a compact 2-in-1 solution for vehicle tracking and data acquisition. It reads essential data like fuel level, consumption, odometer, and speed directly from a wide range of light vehicles, electric vehicles, trucks, and buses, eliminating the need for additional accessories. The device is used for applications such as fleet management, logistics, and remote diagnostics, and it also includes Bluetooth connectivity for external sensors

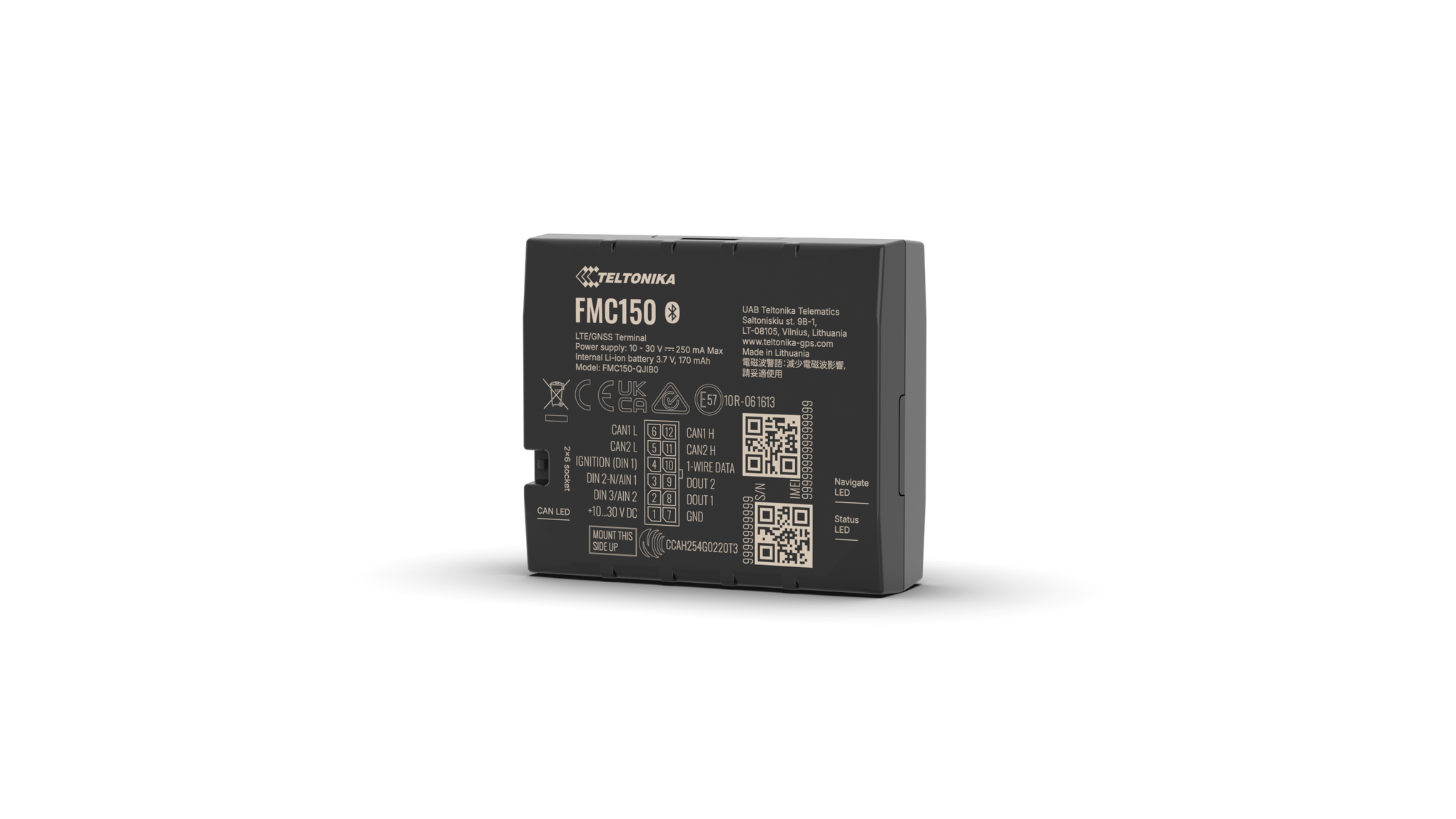

FMM13A Side View

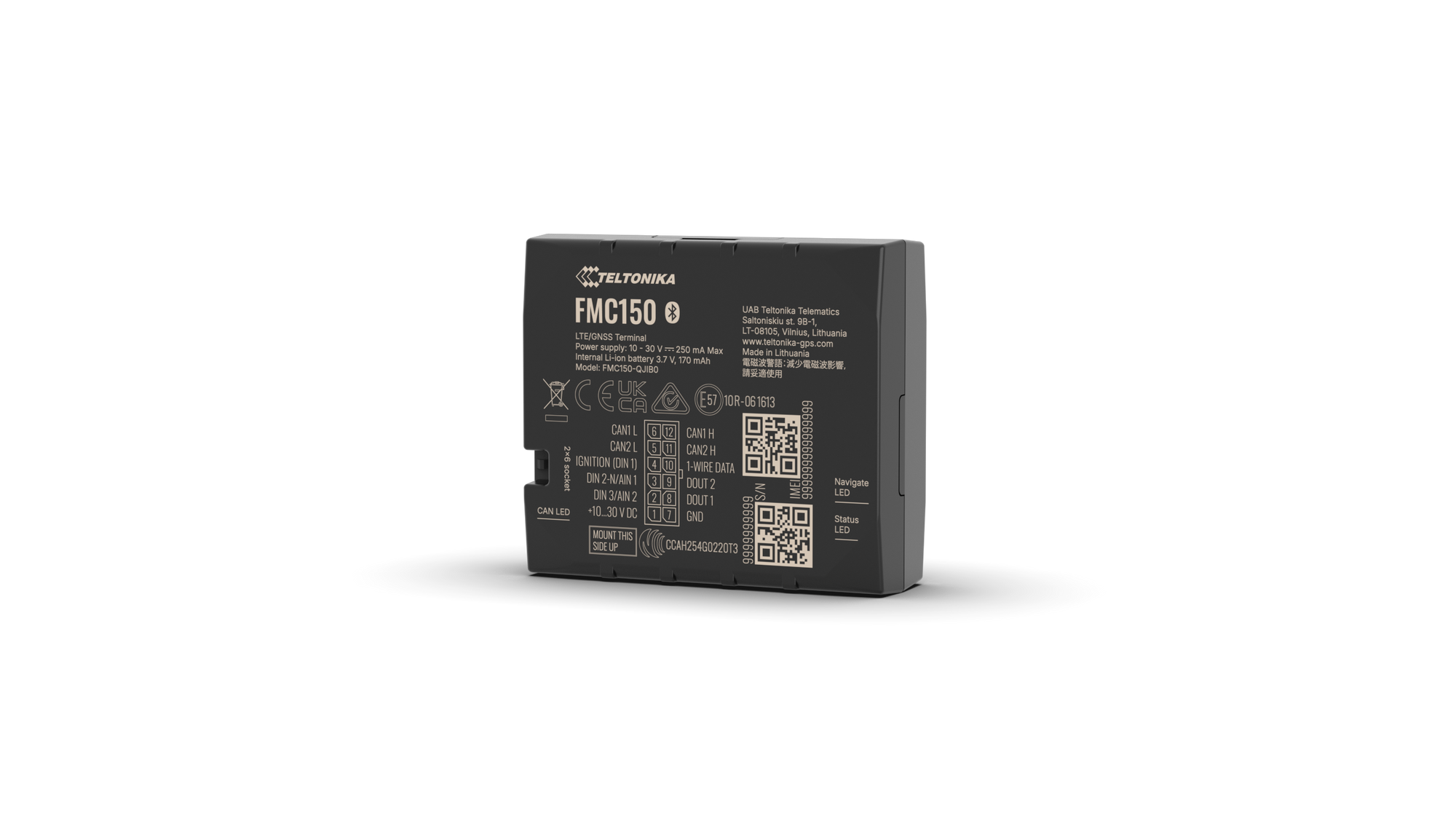

FMM13A Front View

The FMC150 device is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation. The package contains:

  • FMC150 device;
  • Input and output power supply cable with 2x6 connection pins;
  • 3.7 V 170 mAh rechargeable Li-ion battery.
📄 View/Download Quick Manual 👁️ View/Download Datasheet

Technical Specifications

General
Model

FMC150-QJIB0: Quectel EG915U-EU with Teltonika TM2500/

FMC150-QKIB0: Quectel EG915U-LA with Teltonika TM2500

Technology LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
Systems GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33-channel tracking/99 acquisition channels
Tracking Sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Startup Times Hot: <1s, Warm: <25s, Cold: <35s
Cellular
2G Bands

FMC150-QJIB0: GSM: B2/B3/B5/B8

FMC150-QKIB0: GSM: B2/B3/B5/B8

LTE Bands

FMC150-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28

FMC150-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66

Data Speed

          LTE: LTE FDD : Max                   10Mbps (DL)/Max 5Mbps    (UL)

LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)

GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)

SMS Text/Data Supported
Power
Input Voltage 10 - 30 V DC with overvoltage protection
Backup Battery170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power

At 12V < 6mA (Ultra Deep Sleep)

At 12V < 8mA (Deep Sleep)

At 12V < 11mA (Online Deep Sleep)

At 12V < 20mA (GPS Sleep)

At 12V < 35 mA (Nominal with no load)

At 12V < 250 mA Max. (with full Load / Peak)

Bluetooth
Version 4.0 + LE
Peripherals  Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support
Physical
Dimensions 65 x 56,6 x 20,6 mm (L x W x H)
Weight 55 g
Environment
Operating Temp -40°C to +85°C (without battery)
Storage Temp -40°C to +85°C (without battery)
Humidity 5% to 95% non-condensing
IP Rating IP41
Battery Temp Charge: 0°C to +45°C, Discharge: -20°C to +60°C for 1month, Storage: -20°C to +35°C for 6month
Interfaces
Digital Inputs

FMC150-QJIB0: 3

FMC150-QKIB0: 2

Negative Inputs

FMC150-QJIB0: 1 (Digital Input 2)

  FMC150-QKIB0: –

Impuls Inputs

FMC150-QJIB0: 2 (Digital Input 1, Digital Input 2)

FMC150-QKIB0: 1 (Digital Input 1)

Analog Inputs

FMC150-QJIB0: 2

FMC150-QKIB0: 1

Digital Outputs

FMC150-QJIB0: 2

FMC150-QKIB0: 3

CAN interfaces 2

Features

CANData       Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel),           Vehicle driven distance, Engine speed (RPM), Accelerator pedal position
Supported protocols OEM, J1939, IES500, IES125
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Ignition detection                                                                        Digital Input 1, Accelerometer, External Power Voltage, Engine RPM
